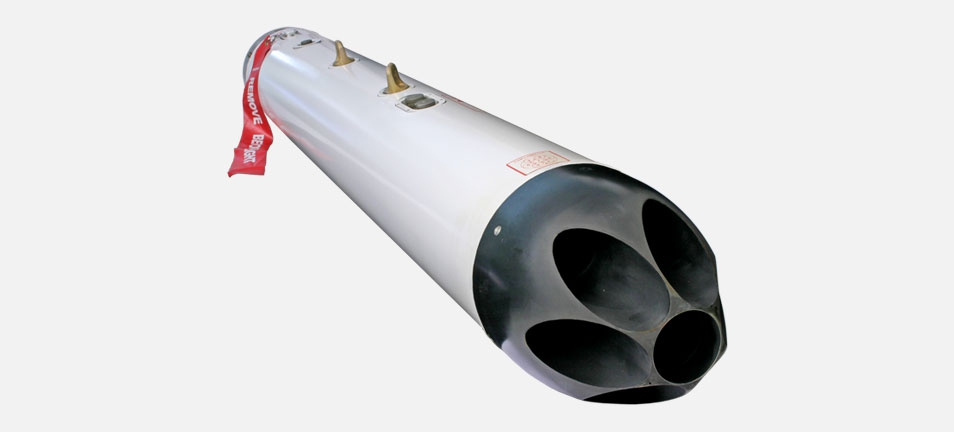

LAU32 7-tube metallic rocket launcher

LAU32 is an aluminium cylindrical 7-tube reusable rocket launcher with a non-removable aerodynamically shaped front and a removable rear fairing designed for fixed wing aircraft use.

The tube arrangement is a central tube surrounded by six equally spaced ones.

There are two LAU32 rocket launcher models currently available.

  • LAU 32 MOD 4 equipped with a removable detent FZ81 for firing FFAR rockets
  • LAU 32 MOD.5 equipped with a removable universal dual purpose detent mechanism FZ125 for firing FFAR and WA rockets

Features

All LAU32 launchers are fitted with an electronic intervalometer, which provides a 40 ms or 60ms rocket firing time interval. Also, each launcher front section is provided with a front fairing used for protection during supersonic flight and adverse weather conditions.



LAU32

MOD.4

MOD.5



Single purpose

For motors equipped with FFAR fins

Dual purpose

For motors equipped with FFAR and WA fins

Mass

~38kg

~37kg

Length

1839mm

2003mm

Outer diameter

252mm

252mm

Detent mechanism

FZ81

FZ125
